JBL SRX715 专业音箱 单15寸 音箱 KTV、婚庆音箱 户外音响

描述

型号：JBL SRX715 专业音箱 单15寸音箱 KTV全频舞台婚庆音箱 户外音响
音箱类型	15”，2路，反射式低音
低频驱动器	1 x JBL2265H差分驱动器
高频驱动器	1 x JBL2431H 3”（音圈）压缩驱动器
灵敏度（1w/1m）	96dB（无源模式）
阻抗	8Ω
最大声压级	131dB@1m
吊挂/安装	双角度，35mm挂杆插座
5个吊挂点和M10滑轨
附件	SRX715-CVR保护软外套
SRX-FF3：3个可拆飞行配件
229–00009–01：3 x 10mm螺栓滑轨垫圈


15" High-Power Two-Way Loudspeaker
The SRX715 offers the highest level of performance available from a portable,
pole or tripod mountable speaker.

FEATURES
Light-weight and very high-power.
75°x 50°coverage.
Bi-amplified or full-range passive operation.
Dual-angle pole socket for applications requiring tripod mounting.
Flying version available (SRX715F) with five suspension points.
May be used with optional M10 eyebolts or detachable track fittings.
Differential Drive® woofer with neodymium magnet
for high power capacity and very light-weight.
3 in. (voice-coil) compression driver with neodymium magnet.

规格参数
额定功率	800W（连续）/ 1600W（节目）/ 3200W（峰值）
Frequency Range	40 Hz - 20kHz (-10 dB)
频率范围（-10dB）	43Hz–20kHz
频率响应（±3dB）	53Hz–20kHz
尺寸 	711 mm x 439 mm x 406 mm (H x W x D)
Frequency Response	53 Hz - 20 kHz (±3 dB)
覆盖角（H x V） 	75º x 50º nominal
净重	22 kg (48 lb.)

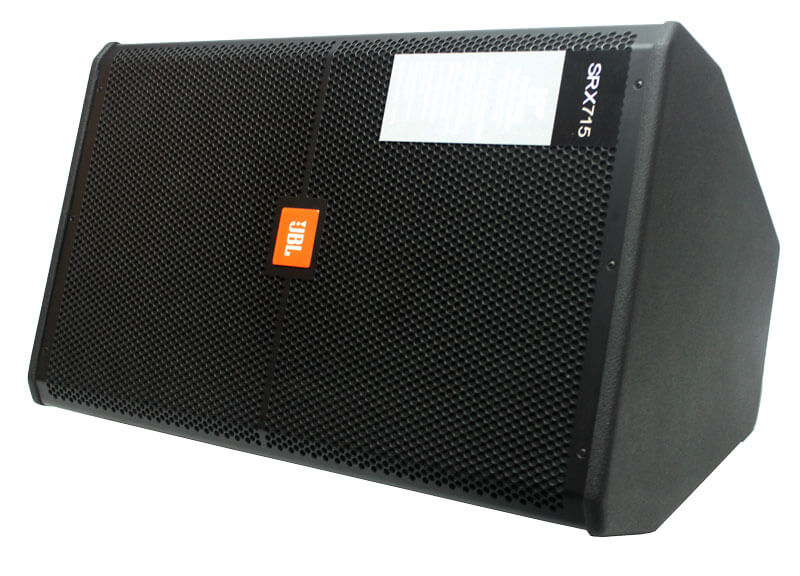

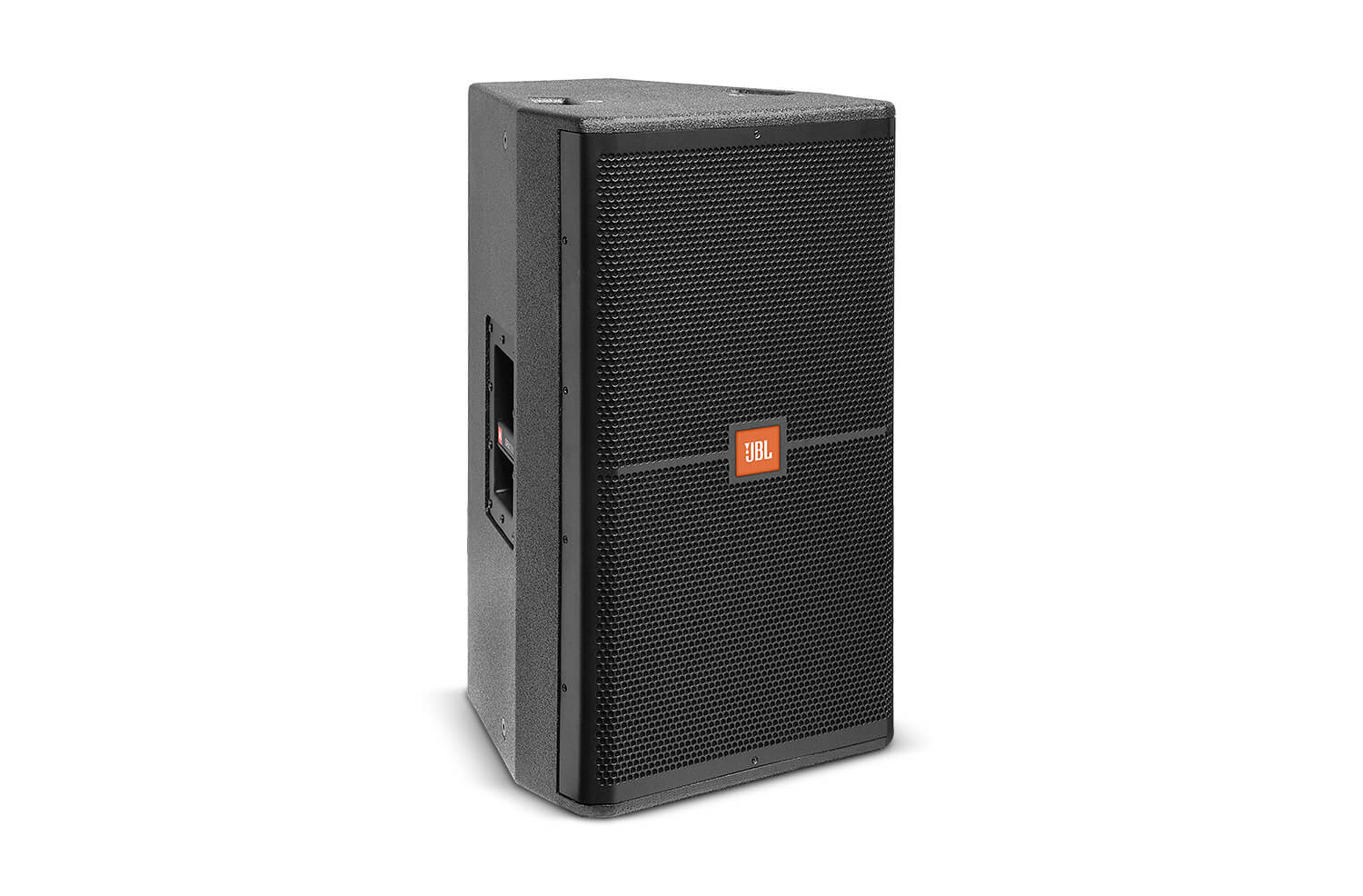

产品图片
